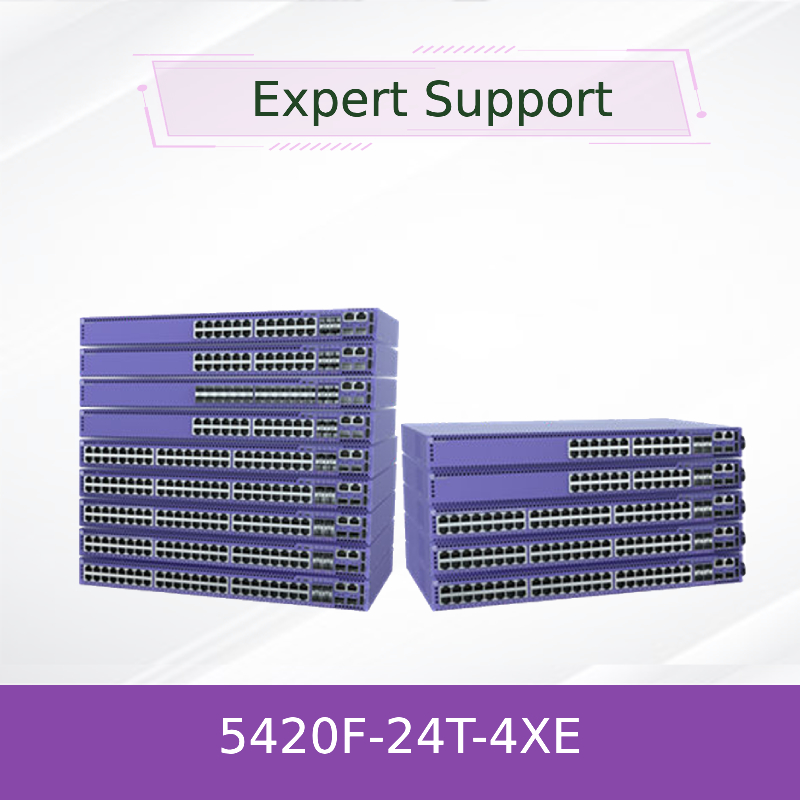

Name: Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses
Brand: Hong Kong Starsurge Group Co., Limited
SKU: 5420F-24T-4XE
Availability: InStock

ホーム > プロダクト > 極度なネットワークAVBスイッチ >

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses

ブランド名:

Extreme

Model Number:

5420F-24T-4XE

私達に連絡しなさい

引用を要求しなさい

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses

プロダクト細部

Model NO.:

5420F-24T-4XE

Transmission Rate:

10/100/1000Mbps

Ports:

≦8

Operating System:

Extreme Xos

L3:

WLAN/STP/Lldp/Lacp

Poe:

2 X 2000W 200-240VAC Poe 3549W

Transport Package:

Carton

Carton:

287× 442 × 43.2mm

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

carton

Delivery Time

7-10days

Payment Terms

T/T

Supply Ability

10000pcs/month

Manufacturer Supply Extreme Network Switch16534 X440-G2-48t-10ge4 Ethernet Network Switch Extreme Xos

最もよい価格を得なさい

Extreme X440 Series Switch X440-G2-24p-10ge4 Extreme Network Switch

最もよい価格を得なさい

High-Performance Extreme X435-8p-4s Network Switch for Fast Connectivity

最もよい価格を得なさい

X435-24P-4S Premium Gigabit Ethernet Switch for Enhanced Network Reliability Extreme Xos

最もよい価格を得なさい

私達に連絡しなさい

+86 18618394729

Elva@cnstarsurge.com

今接触

製品の説明

Product Description

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 0

Universal Edge Switches

The 5420 Series is a family of high-performance, feature-rich, stackable edge switches designed for the next-generation digital enterprise. Available in 24 and 48-port models, the 5420 features both gigabit and multi-gigabit (1/2.5G) versions with up to 90W PoE enabling it to be deployed across a range of edge and wiring-closet environments. As a universal hardware solution, the 5420 also offers a user-selectable choice of Extreme's flagship switch operating systems.
The 5420 Series consists of 5420M and 5420F families to address a variety of end-user needs and price points. 5420M models offer field-replaceable power supplies and fans as well as four 1/10/25Gb built-in uplink ports, while 5420F models offer fixed power supply (with support for a second field-replaceable power supply), fixed fans,and four 1/10Gb built-in uplink ports. All models provide 30/60/90W PoE capabilities making them an ideal wired back end for wireless APs or in support of Next Gen powered Ethernet devices, such as digital signage, pan-tilt-zoom cameras, smart lighting, or point-of-sale terminals.

Highlights

• Manageable by Extreme Platform ONETM*, ExtremeCloudTM IQ or
ExtremeCloud IQ Site Engine
• Fabric-enabled operations with Extreme Fabric for simplified and secure network provisioning and automation
• Choice of operating system (OS) with Universal Hardware
• Reduced mean time to resolution with AI
• ExtremeCloud Universal ZTNA policy enforcement
• Automated and streamlined switch provisioning and day-to-day operations with cloud-based instant actions

Key Hardware Features
• Fixed 24 and 48-port models with gigabit and multi-gigabit support
• 30W, 60W, and 90W PoE (Power over Ethernet) support for powering
connected devices
• 4 x 1/10Gb SFP+ or 4 x 1/10/25Gb built-in uplink ports
• 80Gb per unit stacking of up to eight switches
• Secure link encryption with MACsec across both access and uplink ports
• Non-blocking wire speed design

Network Management Flexibility
The 5520 Universal Switch series are managed by Extreme Platform ONE
or ExtremeCloud IQ from the cloud or on-premises. Alternatively, 5520 onbox management can be done manually via a web-based GUI or generic
command-line interface (CLI).

Extreme Platform ONE
Extreme Platform ONETM is an enterprise connectivity platform that
integrates networking and security with AI into one powerful and radically
simplified experience and licensing model. It supports NetOps, SecOps,
and business teams with built in automation and enables organizations to
regain control, unlock innovation, and boost productivity through:
• One integrated experience that is easy to use.
• Automation through built-in AI that boosts productivity, reducing cycle
time for many tasks from hours to minutes.
• Simplified licensing that makes the solution as easy to buy as it is to
use.
• AI-assisted workflows for configuration, deployment, and management.
• Extreme Fabric and third-party switch visualization and management
in cloud.
• Inventory management simplifies budgeting, planning and compliance.

High-Performance Stacking
The 5520 Series supports high-speed 200Gb* stacking when running
Switch Engine via its two built-in QSFP28 stacking ports. Up to eight
systems can be stacked using qualified QSFP+ direct attach cables and
optical transceivers.

Audio Video Bridging
The 5520 series supports IEEE 802.1 Audio Video Bridging (AVB) when
running Switch Engine OS. This allows 5520 models to deliver reliable, realtime audio/video transmission over Ethernet, meeting the quality of service required for today's high-definition, time-sensitive multimedia streams.

Security
Extreme Universal hardware enables the extension and enforcement of
Fabric and Universal ZTNA policies. Wherever users connect through the
network, their access is secure and segmented. ExtremeCloud Universal
ZTNA, which combines zero-trust network and application access in
one solution, automatically configures devices to enforce security policy
consistently. When used in concert with Extreme Fabric, Universal ZTNA
becomes part of the fabric services that automate segmentation and allow
the network to flex for efficiency and resiliency while keeping security
policy consistent end-to-end.

Network Fabric
The 5520 series switches support Extreme's network fabric natively for
network virtualization, automation, and network security. Extreme Fabric
is the industry's most simple, resilient, and secure end-to-end, enterprise
network fabric solution. Fabric automates discovery and onboarding of
network and user devices. Its sub-second convergence reduces unplanned
downtime and maintenance windows. Automated micro-segmentation
and stealth topology enhance and automate network security across
campus, data center, and branch. Fabric is included free with the purchase
of the 5520, no additional licenses or controllers are required.

Instant Onboarding
5520 Series onboarding to the cloud is a hands-off operation using zero
touch provisioning. Simply unpack the 5520 Series switch, connect it to
the network, and it automatically connects to the cloud, ready to be
provisioned. New switches can be configured, one-by-one, with a few clicks.

MACsec Link Encryption

Universal Hardware

IEEE 802.1AE MACsec* is supported on 5420 access and built-in uplink
ports, enabling the encryption and decryption of packets between
connected switches or devices. As a link-only encryption, 5420 switches
can still apply services to the packet, such as policy or QoS, without
compromising the security of packets across the link. With 128-bit and
256-bit Advanced Encryption Standard (AES) support, the 5420 provides
the most secure link encryption.

Instant Onboarding
5420 Series onboarding to the cloud is a hands-off operation using zero
touch provisioning. Simply unpack the 5420 Series switch, connect it to
the network, and it automatically connects to the cloud, ready to be
provisioned. New switches can be configured, one-by-one, with a few clicks.
Instant port, instant secure port, and instant stack all further reduce time
spent on deployment.

Instant Port
Instant Port automates adds, moves or changes across 5420 Series switch
ports, eliminating the need for manual port configuration. The 5420 Series
automatically detects the connected device and applies the correct port
parameters. The result is significant time savings when adding or moving
devices across the 5420 Series wired network. A simple cloud interface
allows instant Port definitions of customer designated device types which
can then be applied across a single switch, a stack or even all 5420 Series
switches in the network.

External Interfaces

The 5420 comes with a dual-persona capability, allowing you to choose
your Operating System (OS). Either the Switch Engine (EXOS) or Fabric
Engine (VOSS) OS can be selected at switch start-up or changed at a later
stage. When selected, the switch assumes the features and capabilities of
that OS. 5420 OS selection can also be automated with Extreme Platform
ONE or ExtremeCloud IQ so that the desired OS can be automatically
loaded at switch start-up, facilitating remote OS enablement.

Instant Secure Port
Instant Secure Port leverages ExtremeCloud Universal ZTNA for
authentication and zero-trust policy enforcement across the 5420 Series
switch ports, while providing the same add, move, and change automation
features of Instant Port. It simplifies 5420 Series security by using Universal
ZTNA's cloud-based security capabilities, including RADIUS authentication,
unified visibility and reporting, as well as policy enforced locally on 5420
Series ports. In doing so, it delivers a consistent and frictionless security
experience for any user or device connecting through the 5420 Series
switch. (Note: ExtremeCloud Universal ZTNA requires a separate license.)

Instant Stack
Instant Stack simplifies cloud-based stack provisioning, enabling the entire
switch stack to be set up through a single push-button operation. Realworld stack information, including each switch model and their stack order
is captured and replicated in the cloud. Once set up, the entire stack is then
ready to be cloud-provisioned.

Switch Model	Interfaces
5420F - 24T - 4XE	24 x 10/100/1000BASE - T ports - Full / Half - Duplex (autosensing) - MACsec - capable 4 x 1/10Gb SFP+ uplink ports (unpopulated) - MACsec - capable 2 x Stacking/SFP - DD ports* (unpopulated) 1 x Serial console port (RJ - 45) 1 x 10/100/1000BASE - T out - of - band management port 2 x USB A ports for management or external USB flash 1 x USB Micro - B console port
5420F - 24P - 4XE	24 x 10/100/1000BASE - T 802.3at (30W) ports - Full / Half - Duplex (autosensing) - MACsec - capable 4 x 1/10Gb SFP+ uplink ports (unpopulated) - MACsec - capable 2 x Stacking/SFP - DD ports* (unpopulated) 1 x Serial console port (RJ - 45) 1 x 10/100/1000BASE - T out - of - band management port 2 x USB A ports for management or external USB flash 1 x USB Micro - B console port
5420F - 24S - 4XE	24 x 100/1000BASE - X (SFP) ports (unpopulated) - MACsec - capable 4 x 1/10Gb SFP+ uplink ports (unpopulated) - MACsec - capable 2 x Stacking/SFP - DD ports* (unpopulated) 1 x Serial console port (RJ - 45) 1 x 10/100/1000BASE - T out - of - band management port 2 x USB A ports for management or external USB flash 1 x USB Micro - B console port
5420F - 48T - 4XE	48 x 10/100/1000BASE - T ports - Full / Half - Duplex (autosensing) - MACsec - capable 4 x 1/10Gb SFP+ uplink ports (unpopulated) - MACsec - capable 2 x Stacking/SFP - DD ports* (unpopulated) 1 x Serial console port (RJ - 45) 1 x 10/100/1000BASE - T out - of - band management port 2 x USB A ports for management or external USB flash 1 x USB Micro - B console port

5420F-16MW-32P-4XE	16 x 100M/1/2.5GBASE-T 802.3bt (90W) ports • MACsec-capable 32 x 10/100/1000BASE-T 802.3at (30W) ports • Full / Half-Duplex (autosensing) • MACsec-capable 4 x 1/10Gb SFP+ uplink ports (unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port
5420M-24T-4YE	24 x 10/100/1000BASE-T ports • Full / Half-Duplex (autosensing) • MACsec-capable 4 x 10/25Gb SFP28 uplink ports (unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port
5420M-24W-4YE	24 x 10/100/1000BASE-T 802.3bt (90W) ports • Full / Half-Duplex (autosensing) • MACsec-capable 4 x 10/25Gb SFP28 uplink ports (unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port
5420M-48T-4YE	48 x 10/100/1000BASE-T ports • Full / Half-Duplex (autosensing) • MACsec-capable 4 x 10/25Gb SFP28 uplink ports (unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port
5420M-48W-4YE	48 x 10/100/1000BASE-T 802.3bt (90W) ports • Full / Half-Duplex (autosensing) • MACsec-capable 4 x 10/25Gb SFP28 uplink ports (unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port
5420M-16MW-32P-4YE	16 x 100M/1/2.5GBASE-T 802.3bt (90W) ports • MACsec-capable 32 x 10/100/1000BASE-T 802.3at (30W) ports • Full / Half-Duplex (autosensing) • MACsec-capable 4 x 10/25Gb SFP28 uplink ports (unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port

Software Scaling

5420F Series with Switch Engine
• MAC Table: 32,000
• IPv4 ARP Table: 16,000
• IPv4 Route Table: 12,000
• IP Multicast Entries (S,G,V): 6,000
• IPv6 Route Table: 6,000
• IPv6 Neighbor Table 6,000
• ACL (Ingress/Egress): 8,000/1,024
• QoS Egress Queues/Port: 8
• VLANs: 4,094
• IP Interfaces (aka Routed VLANs): 1,533
One Policy Scaling
• Policy Profiles: 63
• Unique Permit/deny rules per switch: 4,024

5420F Series with Fabric Engine
• MAC Table: 16,000 (32,000 non-Fabric)
• IPv4 ARP Table: 8,000
• IPv4 Route Table: 11,750
• IP Multicast Entries (S,G,V): 4,000
• IPv6 Route Table: 5,750
• IPv6 Neighbor Table 8,000
• ACL (Ingress/Egress): 1,024/336
• QoS Egress Queues/Port: 8
• VLANs: 4,059
• IP Interfaces (aka Routed VLANs): 248
Fabric Connect Scaling
• Fabric Adjacencies per switch: 50
• BEB Nodes per VSN (I-SID): 500

5420M Series with Switch Engine
• MAC Table: 64,000
• IPv4 ARP Table: 24,000
• IPv4 Route Table: 12,000
• IP Multicast Entries (S,G,V): 12,000
• IPv6 Route Table: 6,000
• IPv6 Neighbor Table 12,000
• ACL (Ingress/Egress): 18,000/1,024
• QoS Egress Queues/Port: 8
• VLANs: 4,094
• IP Interfaces (aka Routed VLANs): 1,533
One Policy Scaling
• Policy Profiles: 63
• Unique Permit/deny rules per switch: 8,120

• L2 VSNs: 512
• L3 VSNs: 64

5420M Series with Fabric Engine
• MAC Table: 32,000 (64,000 non-Fabric)
• IPv4 ARP Table: 24,000
• IPv4 Route Table: 11,750
• IP Multicast Entries (S,G,V): 4,000
• IPv6 Route Table: 5,750
• IPv6 Neighbor Table 16,000
• ACL (Ingress/Egress): 1,024/336
• QoS Egress Queues/Port: 8
• VLANs: 4,059
• IP Interfaces (aka Routed VLANs): 248
Fabric Connect Scaling
• Fabric Adjacencies per switch: 50
• BEB Nodes per VSN (I-SID): 500
• L2 VSNs: 512
• L3 VSNs: 64

Environmental

Please enter the title here

Environmental Specifications
EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
EN/ETSI 300 753 (1997-10) - Acoustic Noise
ASTM D3580 Random Vibration Unpackaged 1.5 G

Environmental Compliance
EU RoHS - 2011/65/EU
EU WEEE - 2012/19/EU
EU REACH - Regulation (EC) No 1907/2006 - Reporting
China RoHS - SJ/T 11363-2006
Taiwan RoHS - CNS 15663 (2013.7)

Environmental Operating Conditions
Temp: 0°C to 50°C (32°F to 122°F) for Front-Back cooling
Temp: 0°C to 45°C (32°F to 113°F) for Back-Front cooling (5520-24T, 5520-24x,5520-48T, 5520-48SE)
Humidity: 5% to 95% relative humidity, non-condensing
Altitude: 0 to 3,000 meters (9,850 feet)
Shock (half sine): 98m/s2 (10G), 11ms, 18 shocks
Random vibration: 3Hz to 500Hz at 1.5 G rms

Packaging and Storage Specifications
Temp: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 95% relative humidity, non-condensing
Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks

Packaged Vibration: 5Hz to 62Hz at velocity 5 mm/s, 62Hz to 500Hz at 0.2 G
Packaged Random Vibration: 5Hz to 20Hz at 1.0 ASD w/–3 dB/oct. from
20Hz to 200Hz
Packaged Drop Height: 14 drops minimum on sides and corners at 42
inches (<15 kg box)
Regulatory and Safety
North American ITE
UL 60950-1
UL/CuL 62368-1 Listed
Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
CDRH Letter of Approval (US FDA Approval)
CAN/CSA 22.2 No. 60950-1
European ITE
EN 60950-1, EN 62368-1

Ordering Information

EMI/EMC Standards
North American EMC for ITE
FCC CFR 47 Part 15 Class A (USA)
CB Report and Certificate IEC 62368-1
RoHS Directive 2011/65/EU
AS/NZS 60950-1 (Australia /New Zealand)
European EMC Standards
EN 55035
EN 55032 Class A
EN 55024
EN 55011
EN 61000-3-2,2014 (Harmonics)
EN 61000-3-3 2013 (Flicker)
EN 300 386 (EMC Telecommunications)
2014/30/EU EMC Directive
International EMC Certifications
CISPR 32, Class A (International Emissions)
AS/NZS CISPR32
CISPR 24 Class A (International Immunity)
IEC 61000-4-2/EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air,
Criteria B
IEC 61000-4-3 /EN 61000-4-3 Radiated Immunity 10V/m, Criteria A
IEC 61000-4-4/EN 61000-4-4 Transient Burst, 1 kV, Criteria AB
IEC 61000-4-5 /EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria B
IEC 61000-4-6 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS,
Criteria A
IEC/EN 61000-4-11 Power Dips & Interruptions, >30%, 25 periods, Criteria C
Country Specific
VCCI Class A (Japan Emissions)
ACMA RCM (Australia Emissions)
CCC Mark (China)
KCC Mark, EMC Approval (Korea)
EAC Mark (Custom Union)
NRCS Mark (South Africa)
BSMI Mark (Taiwan)
Anatel (Brazil)
NoM (Mexico)
IEEE 802.3 Media Access Standards
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3bt Type4 PoE
IEEE 802.3ae 10GBASE-X

Part Number	Product Name	Description
5420F-24T-4XE	5420F 24-port Switch	5420 Universal Switch with 24 x 10/100/1000BASE-T Full / Half-Duplex ports, includes 4 x 1/10Gb SFP+ uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420F-24P-4XE	5420F 24-port 30W PoE Switch	5420 Universal Switch with 24 x 10/100/1000BASE-T Full / Half-Duplex 802.3at 30W PoE ports, includes 4 x 1/10Gb SFP+ uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420F-24S-4XE	5420F 24-port SFP Switch	5420 Universal Switch with 24 x 100M/1Gb SFP ports, includes 4 x 1/10Gb SFP+ uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420F-48T-4XE	5420F 48-port Switch	5420 Universal Switch with 48 x 10/100/1000BASE-T Full / Half-Duplex ports, includes 4 x 1/10Gb SFP+ uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420F-48P-4XE	5420F 48-port 30W PoE Switch	5420 Universal Switch with 48 x 10/100/1000BASE-T Full / Half-Duplex 802.3at 30W PoE ports, includes 4 x 1/10Gb SFP+ uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420F-48P-4XL	5420F 48-port 30W PoE Switch with LRM	5420 Universal Switch with 48 x 10/100/1000BASE-T Full / Half-Duplex 802.3at 30W PoE ports, includes 4 x 1/10Gb SFP+ LRM and uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420F-8W-16P-4XE	5420F 24-port Switch with 8 ports 90W and 16 ports 30W PoE	5420 Universal Switch with 8 x 10/100/1000BASE-T Full / Half-Duplex 802.3bt 90W PoE ports and 16 x 10/100/1000BASE-T Full / Half-Duplex 802.3at 30W PoE ports, includes 4 x 1/10Gb SFP+ uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420F-16W-32P-4XE	5420F 48-port Switch with 16 ports 90W and 32 ports 30W PoE	5420 Universal Switch with 16 x 10/100/1000BASE-T Full / Half-Duplex 802.3bt 90W PoE ports and 32 x 10/100/1000BASE-T Full / Half-Duplex 802.3at 30W PoE ports, includes 4 x 1/10Gb SFP+ uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420F-16MW-32P-4XE	5420F 48-port Switch with 16 ports 90W multi-rate and 32 ports 30W PoE	5420 Universal Switch with 16 x 100Mb/1Gb/2.5Gb 802.3bt 90W PoE ports plus 32 x 10/100/1000BASE-T Full / Half-Duplex 30W PoE Ports, includes 4 x 1/10Gb SFP+ uplink ports,2 x Stacking/SFP-DD ports,1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license
5420M-24T-4YE	5420M 24-port Switch	5420 Universal Switch with 24 x 10/100/1000BASE-T Full / Half-Duplex ports, includes 4 x 10/25Gb SFP28 uplink ports,2 x Stacking/SFP-DD ports, two unpopulated PSU slots, modular fan module, Base software license
5420M-24W-4YE	5420M 24-port 90W PoE Switch	5420 Universal Switch with 24 x 10/100/1000BASE-T 802.3bt 90W PoE Full / Half-Duplex ports, includes 4 x 10/25Gb SFP28 uplink ports,2 x Stacking/SFP-DD ports, two unpopulated PSU slots, modular fan module, Base software license
5420M-48T-4YE	5420M 48-port Switch	5420 Universal Switch with 48 x 10/100/1000BASE-T Full / Half-Duplex ports, includes 4 x 10/25Gb SFP28 uplink ports,2 x Stacking/SFP-DD ports, two unpopulated PSU slots, modular fan module, Base software license
5420M-48W-4YE	5420M 48-port 90W PoE Switch	5420 Universal Switch with 48 x 10/100/1000BASE-T 802.3bt 90W PoE Full / Half-Duplex ports, includes 4 x 10/25Gb SFP28 uplink ports,2 x Stacking/SFP-DD ports, two unpopulated PSU slots, modular fan module, Base software license
5420M-16MW-32P-4YE	5420M 48-port Switch with 16 ports 90W multi-rate and 32 ports 30W PoE	5420 Universal Switch with 16 x 100Mb/1Gb/2.5Gb 802.3bt 90W PoE ports plus 32 x 10/100/1000BASE-T Full / Half-Duplex 30W PoE Ports, includes 4 x 10/25Gb SFP28 uplink ports,2 x Stacking/SFP-DD ports, two unpopulated PSU slots,modular fan module,Base software license
Accessories
XN-ACPWR-150W	150W AC PSU FB	150W AC PSU, Front to Back Airflow
XN-ACPWR-150W-FB	150W AC PSU FB	150W AC PSU, Front to Back Airflow
XN-ACPWR-600W	600W AC PSU FB	600W AC PSU, Front to Back Airflow
XN-ACPWR-600W-FB	600W AC PSU FB	600W AC PSU, Front to Back Airflow
XN-ACPWR-920W	920W AC PSU FB	920W AC PSU, Front to Back Airflow
XN-ACPWR-920W-FB	920W AC PSU FB	920W AC PSU, Front to Back Airflow
XN-ACPWR-1200W	1200W AC PSU FB	1200W AC PSU, Front to Back Airflow
XN-ACPWR-1200W-FB	1200W AC PSU FB	1200W AC PSU, Front to Back Airflow
XN-ACPWR-2000W	2000W AC PSU FB	2000W AC PSU, Front to Back Airflow
XN-ACPWR-2000W-FB-A	2000W AC PSU FB	2000W AC PSU, Front to Back Airflow
XN-FAN-000	Spare Fan Module FB	Spare Fan Module for 5420 Series, Front to Back Airflow
ESTS01	Air Temperature Thermal Sensor	Ambient Air Temperature Sensor for Energy Star (USB)

Product Description

Company Introduction
Our company has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 1

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 2

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 3

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 4

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 5

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 6

CUSTOMER REVIEW /corporate strength

Ø We have many products of Mellanox, Extreme, Aruba etc. Such as witches, network cards, cables, modules, wireless APs as so on.
Ø We are an elite agent of Mellanox .
Ø We are the largest agents of Extreme in China.
Ø Our main office is in Beijing, and our branches are in Nanjing, Shanghai, Guangzhou,Shenzheng and Hong Kong. We have warehouses in Beijing, Nanjing, and Hong Kong, with a large amount of original and new product inventory, which can achieve fast delivery in multiple locations.
Ø Our products are mainly applicated for PC (high performance computing), cloud computing, data centers, enterprise computing, storage, and has software development capabilities.
Ø We had provided intelligent transformation total solution for many customers in the fields of artificial intelligence, supercomputing, government and enterprise research institutes, universities, the Internet, and other industries. Such as BerryGenomics, FedEx, Tsinghua Research Institute etc.

Authorization and Certification

Our company cooperate with many famous brands have, company is nvidia elite agents, sales Mellanox related network products, at the same time also is Extreme, the Ruckus, Aruba, H3C and other gold medal agent has many brands of engineer's qualification certificate, to provide reliable technical support.

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 7

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 8

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 9

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 10

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 11

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 12

Packing & Delivery

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 13

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses 14

Our network products are all packaged in brand-new original sealed boxes. They are unopened after leaving the factory. The quality is guaranteed. On the packaging, we use high-density EPE pearl cotton, anti-static air cushion films and other professional cushioning materials, combined with custom hard cardboard boxes for reinforcement. They provide comprehensive protection against shock, moisture and static electricity. We offer various shipping methods such as air express, international dedicated lines, and sea transportation for delivery, covering 100+ countries and regions worldwide. The logistics information can be checked in real time. The products enjoy a one-year warranty. Damaged during transportation can be returned or exchanged for free. You can make your purchase with peace of mind.

FAQ

Q1: What can you buy from us?
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.

Q2: How about the delivery date?
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.

Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6: What are your core strengths?
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service

Q7: Price questions
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.

札：

Extreme 5420f-24t-4xe Switch: Reliable Networking Solution for Businesses

Manufacturer Supply Extreme Network Switch16534 X440-G2-48t-10ge4 Ethernet Network Switch Extreme Xos

Extreme X440 Series Switch X440-G2-24p-10ge4 Extreme Network Switch

High-Performance Extreme X435-8p-4s Network Switch for Fast Connectivity

X435-24P-4S Premium Gigabit Ethernet Switch for Enhanced Network Reliability Extreme Xos

Product Description

極度なavbスイッチ

extremeswitching

極度なネットワークのavb

104GBPS 16531 X440免許証による極度なネットワークAVBスイッチG2 12p 10GE4 4

16530極度なスイッチX440 G2エクストリーム・ネットワークスAVB 12T 10GE4

24ポート Extreme Networks X435 AVBスイッチ X435 4S 68Gbps 50.6Mpps 新品・オリジナル

10411極度なネットワークAVBは光学1m DACケーブルを転換する

16107ネットワークスイッチケーブルの極度な積み重ねケーブル1.5M

10GbはTBPS極度なネットワークAVBスイッチX690-48X-2Q-4C 1.76の切換えを進めた

10GE4 スケーラブル AVB Extreme Networks X440 スイッチ G2 24T X440-G2-24p-10GE4 新品およびオリジナル

48ports X460の極度なネットワークAVB 48T 10を転換するため100 1000BASE -潜伏Mbpsを差し引いたT
