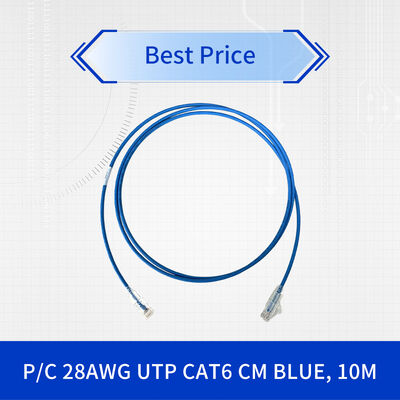

10M UTP CAT6 CM Patch Cord with 250MHz Bandwidth for 10GBASE-T Applications
商品の詳細:
| ブランド名: | Commscope |
| モデル番号: | 760257420 |
| 書類: | PC 28AWG UTP CAT6 CM CN new...ew.pdf |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | Negotiate |
| パッケージの詳細: | 箱 |
| 受渡し時間: | 備蓄に基づいた |
| 支払条件: | T/T |
| 供給の能力: | プロジェクト/バッチによる供給 |
|
詳細情報 |
|||
| ANSI/TIAクラス: | 6 | ケーブルタイプ: | U/UTP （保護されていない） |
|---|---|---|---|
| 導体の種類: | 多芯コード | インターフェース、コネクタA: | RJ45プラグ |
| コネクタ、コネクタB: | RJ45プラグ | 肌の色: | 色展開: 黒、赤、オレンジ、グレー、黄、青、緑、白 |
| 長さ: | 3m | ||
| ハイライト: | 10M Patch Cord,250MHz Bandwidth Ethernet Cable,10GBASE-T Applications RJ45 Cable |
||
製品の説明
High-Density Networking Solution
Engineered for modern data-intensive environments, the CommScope NETCONNECT 28AWG UTP CAT6 CM represents the evolution of structured cabling. This advanced Category 6 superfine Ethernet cable delivers exceptional performance in space-constrained applications while maintaining full compliance with industry standards.
Primary Benefits:
- Ultra-slim 28AWG construction optimizes rack space utilization
- Superior electrical characteristics ensure reliable Gigabit Ethernet transmission
- CM-rated jacket meets commercial building code requirements
- Color-coded options streamline network management and maintenance
Design & Construction Features
This innovative UTP CAT6 CM cable incorporates several advanced design elements:
| Feature | Benefit |
|---|---|
| 28 AWG Stranded Copper Conductors | Enhanced flexibility and durability while reducing cable diameter |
| Precision Twisted Pairs | Optimized twist rates minimize crosstalk and electromagnetic interference |
| CM-Rated PVC Jacket | Suitable for commercial installations with appropriate fire safety ratings |
| Gold-Plated RJ45 Contacts | Superior corrosion resistance and reliable connectivity |
Performance & Compliance
This superfine Cat6 patch cord is designed to exceed the demanding requirements of modern networking environments. The cable maintains precise impedance control and minimal attenuation across the entire 250MHz bandwidth, ensuring robust performance for 10GBASE-T applications at reduced distances.
Compliance certifications include:
- ANSI/TIA-568-C.2 Category 6
- ISO/IEC 11801 Class E
- CM rating per NEC articles
- RoHS compliance for environmental safety
Ideal Deployment Scenarios
Data Centers
Maximize port utilization in high-density switch configurations with reduced cable congestion.
Office Networks
Streamline cable management in telecommunications rooms and workstation areas.
AV Systems
Deliver reliable HD video and audio transmission in professional installations.
Detailed Specifications
| Attribute | Value |
|---|---|
| Product Type | 28AWG UTP CAT6 CM Patch Cord |
| Conductor Size | 28 American Wire Gauge |
| Cable Construction | Unshielded Twisted Pair (U/UTP) |
| Outer Diameter | 4.2 millimeters |
| Jacket Material | Polyvinyl Chloride (CM Rated) |
| Connector Type | 8P8C RJ45 Plugs |
| Contact Plating | 50μ" Gold |
| Performance Category | Category 6 (250 MHz) |
Value Proposition
This ultra-thin Cat6 Ethernet cable delivers significant advantages over conventional Category 6 solutions:
- Space Efficiency: 28AWG design enables up to 30% more cables in the same pathway compared to standard 24AWG Cat6 cables
- Improved Thermal Management: Reduced cable mass enhances airflow in enclosed spaces
- Installation Flexibility: Superior bend radius facilitates routing in constrained areas
- Future-Proof Performance: Supports emerging applications requiring high bandwidth
Support & Services
CommScope provides comprehensive technical support for the NETCONNECT 28AWG UTP CAT6 CM product line. Our global network of certified engineers offers design consultation, installation guidance, and troubleshooting assistance. Custom configuration services are available for large-scale deployments.
Installation Guidelines
- Maintain minimum bend radius of 1 inch (25mm) during installation
- Use appropriate cable management accessories to prevent stress on connectors
- Avoid running parallel to power cables where possible to minimize interference
- Test each connection to verify Category 6 performance standards are met
- Follow manufacturer recommendations for maximum pulling tension
