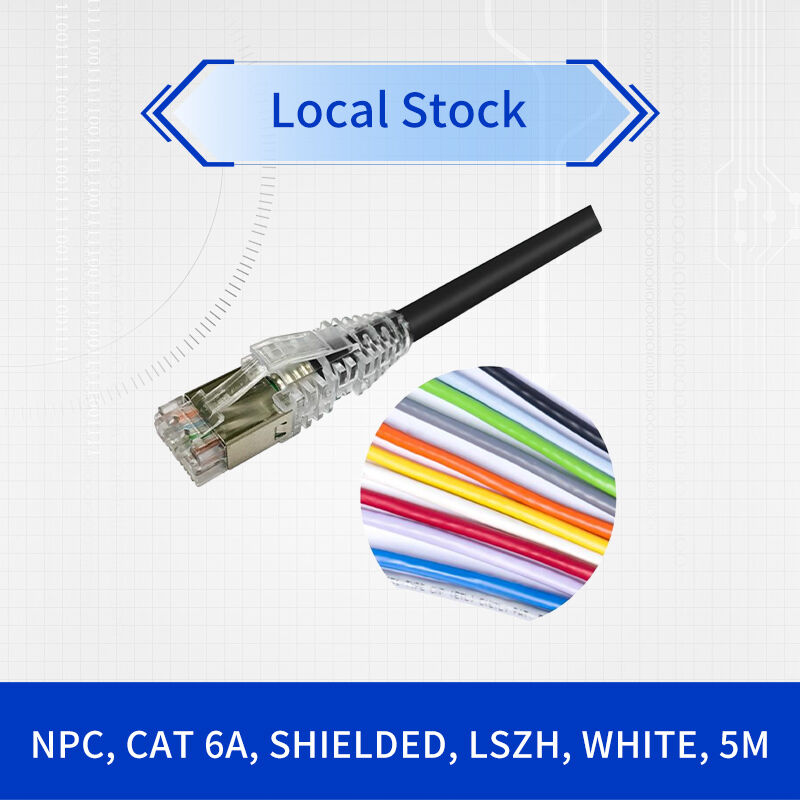

Professional Cat6E SFTP Shielded Patch Cord - NPC6ASZDB High-Speed Ethernet Cable for Data Centers
商品の詳細:
| ブランド名: | Commscope |
| モデル番号: | NPC6ASZDB-WT005M |
| 書類: | NPC6ASZDB.pdf |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | Negotiate |
| パッケージの詳細: | 箱 |
| 受渡し時間: | 備蓄に基づいた |
| 支払条件: | T/T |
| 供給の能力: | プロジェクト/バッチによる供給 |
|
詳細情報 |
|||
| ANSI/TIAの部門: | 6A | ケーブルタイプ: | S/FTP (ブロック) |
|---|---|---|---|
| 導体の種類: | 多撚り | コネクタa: | RJ45プラグ |
| コネクタ特性、コネクタA: | 標準 | コネクタb: | RJ45プラグ |
| 接続特性、コネクタB: | 標準 | 長さ: | 5m |
| ハイライト: | Cat6E SFTP shielded Ethernet cable,high-speed data center patch cord,NPC6ASZDB shielded network cable |
||
製品の説明
Professional Cat6E SFTP Shielded Patch Cord - NPC6ASZDB High-Speed Ethernet Cable for Data Centers
NPC6ASZDB Cat6E SFTP Shielded Patch Cord
Premium Ethernet Connectivity for Demanding Network Environments
Product Overview
The NPC6ASZDB represents the pinnacle of Cat6E SFTP patch cord technology, engineered to deliver exceptional performance in high-density network environments. This shielded twisted pair patch cord combines advanced shielding technology with robust construction to ensure reliable 10Gbps data transmission.
10Gbps
Data Speed
500MHz
Bandwidth
100m
Maximum Reach
LSZH
Safety Rating
Technical Specifications
| Parameter | Specification | Details |
|---|---|---|
| Category Rating | Cat6E/6A | Enhanced Category 6 Performance |
| Shielding Type | SFTP | Shielded Foiled Twisted Pair |
| Connectors | RJ45 | 8P8C Gold Plated |
| Cable Diameter | 5.84mm | 0.23 inches |
| Operating Temp | -20°C to +60°C | -1°F to +140°F |
Color Options & Identification
Applications & Use Cases
Data Centers
Ideal for server racks, switch interconnections, and storage area networks where reliable high-speed connectivity is critical.
Enterprise Networks
Perfect for office environments, workstation connections, and network infrastructure deployments.
Industrial Settings
Withstands challenging environments while maintaining signal integrity and performance.
Compliance & Certifications
- ANSI/TIA-568.2-D Category 6A
- ISO/IEC 11801 Class EA
- IEEE 802.3b1 Type 4
- UL 1863 Safety Certified
- ANATEL Certified
- Low Smoke Zero Halogen
- RoHS Compliant
- REACH Compliant
Installation Guidelines
- Maintain minimum bend radius of 25mm during installation
- Ensure proper grounding for optimal shielding performance
- Avoid excessive tension during cable pulling
- Use appropriate cable management accessories
- Verify performance with certified testing equipment
