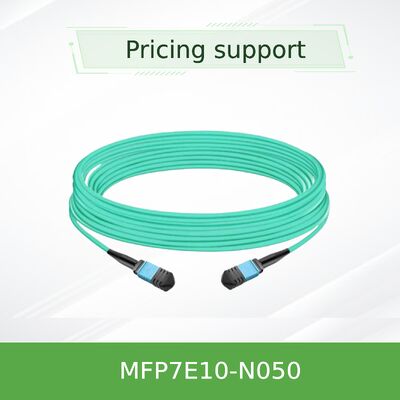

NVIDIA MFP7E10-N050 MPO-12/APC Multimode Fiber Cable 50m 400G NDR/InfiniBand |OM4 Type B Crossover
商品の詳細:
| ブランド名: | Mellanox |
| モデル番号: | MFP7E10-N050（980-9I57Y-00N050） |
| 書類: | MFP7E10-Nxxx.pdf |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | Negotiate |
| パッケージの詳細: | 外箱 |
| 受渡し時間: | 備蓄に基づいた |
| 支払条件: | T/T |
| 供給の能力: | プロジェクト/バッチによる供給 |
|
詳細情報 |
|||
| モデル: | MFP7E10-N050 | 長さ: | 50のM |
|---|---|---|---|
| ファイバーの種類: | マルチモードOM4 | コネクタ: | MPO-12/APC（女性） |
| 挿入損失: | ≤0.37dB | リターンロス: | 35 dB以上 |
| ハイライト: | NVIDIA Mellanox 400G fiber cable,OM4 multimode fiber cable 50m,InfiniBand crossover fiber cable |
||
製品の説明
NVIDIA MFP7E10-N050 MPO-12/APC Multimode Fiber Cable 50m 400G NDR/InfiniBand | OM4 Type B Crossover
High-performance 50-meter passive multimode fiber optic cable designed for 400G NDR/InfiniBand interconnections in modern data centers.
Product Overview
The NVIDIA MFP7E10-N050 is a 50-meter passive multimode fiber optic cable featuring MPO-12/APC connectors in a Type B crossover configuration. It provides reliable, low-latency connectivity for high-performance compute and storage fabrics, supporting protocols including InfiniBand, Ethernet, and NVLink.
Key Features
- Connector Type: MPO-12/APC (Female to Female), 8° angled polish
- Fiber Type & Length: 50/125 µm Multimode OM4, 50 meters
- Cable Type: Type B (crossover) configuration
- Jacket: Aqua-colored LSZH-OFNR (Low Smoke Zero Halogen, Riser Rated)
- Performance: Insertion Loss ≤ 0.35 + 0.0004*L dB; Return Loss ≥ 35 dB
- Durability: Minimum bend radius of 30 mm, flexible round jacket
- Compliance: Meets Telcordia GR-1435, IEC 61754-7, and ANSI/TIA/EIA 604-5
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Model | MFP7E10-N050 |
| Interface/Connector | MPO-12/APC (Female) to MPO-12/APC (Female) |
| Cable Length | 50 meters |
| Fiber Type | 50/125 µm Multimode OM4 |
| Active Fibers | 8 (4 Tx, 4 Rx) |
| Maximum Data Rate | 400 Gb/s per port (NDR InfiniBand / 400GbE) |
| Maximum Reach | 50 m (with 4 connector junctions) |
| Insertion Loss | ≤ 0.37 dB (calculated for 50m) |
| Return Loss | ≥ 35 dB |
| Cable Diameter | 3.0 ± 0.2 mm |
| Operating Temperature | 0°C to 70°C |
Applications
Ideal for high-performance computing (HPC), artificial intelligence (AI) clusters, enterprise data centers, and cloud storage environments:
- Switch-to-Switch: Connecting 400G NDR InfiniBand or Ethernet switches
- Switch-to-Adapter: Linking switches to servers with ConnectX-7 network cards or BlueField-3 DPUs
- Rack-Scale Integration: Facilitating spine-leaf architectures and storage network backbones
Frequently Asked Questions
Q1: Is the MFP7E10-N050 compatible with my existing 100G QSFP28 switches?
No. This cable uses MPO-12/APC connectors designed for 400G NDR/InfiniBand OSFP transceivers. For 100G links using MPO-12/UPC connectors, a different cable type is required.
Q2: Can I use this cable to connect a switch directly to a server with a ConnectX-7 network card?
Yes, absolutely. This is a primary application. The Type B crossover wiring is correct for connecting a switch's MPO port to the MPO port on a ConnectX-7 or BlueField-3 adapter.
Q3: What is the difference between OM3 and OM4 fiber in this product?
For the MFP7E10-N050 (50m length), OM4 multimode fiber is used. OM4 has higher bandwidth and supports longer reaches at high data rates compared to OM3, ensuring the 400G signal integrity over the full 50-meter distance.
Q4: Are dust caps and cleaning recommendations included?
Yes, the cable ships with protective dust caps. It is critical to clean both the cable connector and the transceiver receptacle with a proper optical cleaning tool before mating to prevent contamination and signal loss.
Important Precautions
- Compatibility: Confirm your transceiver type (must be MPO-12/APC, not UPC)
- Installation: Handle connectors by the body, not the fiber end; observe minimum bend radius (30 mm)
- Environmental: Operate within 0°C to 70°C temperature and 10% to 85% RH humidity ranges
- Cleaning: Mandatory pre-installation cleaning of both connectors is required
- EMC & Safety: Follow standard ESD precautions during handling
