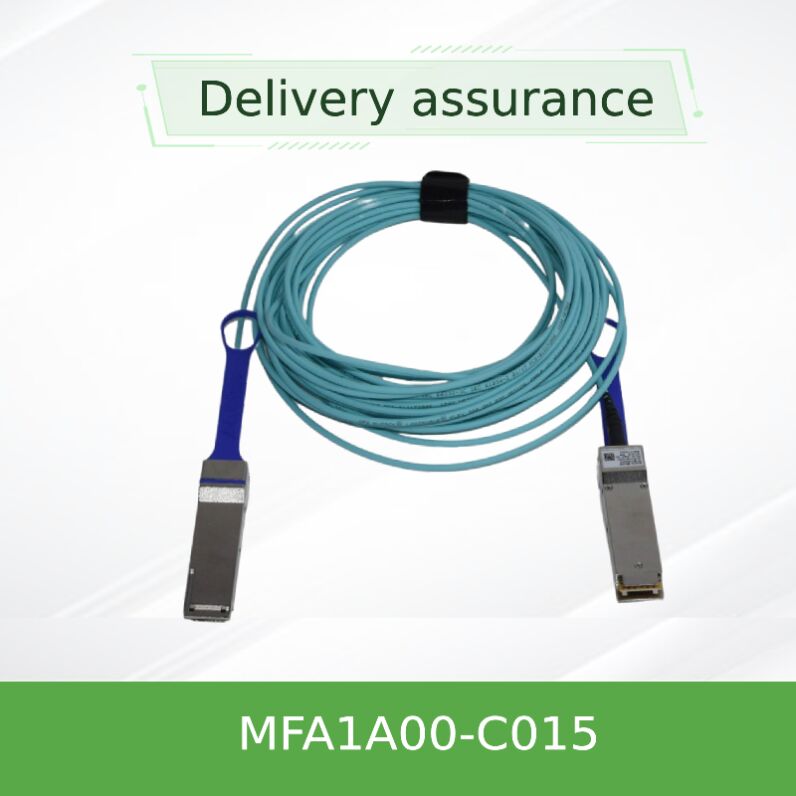

NVIDIA Mellanox MFA1A00-C015 QSFP28 100Gb/s Active Optical Cable (AOC) 15m 100GbE & InfiniBand EDR Plug-and-Play High-Speed Network Interconnect
商品の詳細:
| ブランド名: | Mellanox |
| モデル番号: | MFA1A00-C015 |
| 書類: | MFA1A00-xxxx.pdf |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | Negotiate |
| パッケージの詳細: | 外箱 |
| 受渡し時間: | 備蓄に基づいた |
| 支払条件: | T/T |
| 供給の能力: | プロジェクト/バッチによる供給 |
|
詳細情報 |
|||
| 可用性: | ストック | 保証: | 1年 |
|---|---|---|---|
| 状態: | 新しい、オリジナル | リードタイム: | 株によると |
| テクノロジー: | イーサネット | 最高速度: | 100GBE |
| 長さ: | 15メートル | コネクタの種類: | QSFP28 |
| ハイライト: | NVIDIA Mellanox 100Gb/s AOC cable,QSFP28 high-speed network interconnect,100GbE InfiniBand EDR active optical cable |
||
製品の説明
NVIDIA Mellanox MFA1A00-C015 QSFP28 100Gb/s Active Optical Cable (AOC)
Product Overview
The NVIDIA® Mellanox MFA1A00-C015 is a high-performance Active Optical Cable (AOC) engineered for 100 Gigabit Ethernet (100GbE) and InfiniBand EDR applications requiring a 15-meter reach. This solution integrates VCSEL-based optical transceivers into a durable cable assembly, providing a complete, reliable link between switches, routers, or servers.
Key Advantages
- Optimal Rack-Scale Performance: Delivers full 100Gb/s bandwidth with 15-meter reach for intra-rack and top-of-rack connectivity
- Energy-Efficient Design: Consumes only 2.2W typical power per end, reducing thermal load and operational costs
- Plug-and-Play Reliability: Hot-pluggable QSFP28 connectors enable tool-free installation and minimize downtime
- Proactive Health Monitoring: Comprehensive Digital Diagnostic Monitoring for real-time insights and predictive maintenance
Technical Specifications
| Parameter | Specification | Unit / Notes |
|---|---|---|
| Product Model | MFA1A00-C015 | Primary ordering number |
| Supported Standards | 100GBASE-SR4 Ethernet, InfiniBand EDR | Protocol |
| Data Rate (Max) | 100 | Gb/s |
| Cable Length | 15 | Meters |
| Connector Type | QSFP28 (SFF-8665) | Both ends |
| Max Power Dissipation | 2.2 (per end, retiming on) | Watts |
Application Scenarios

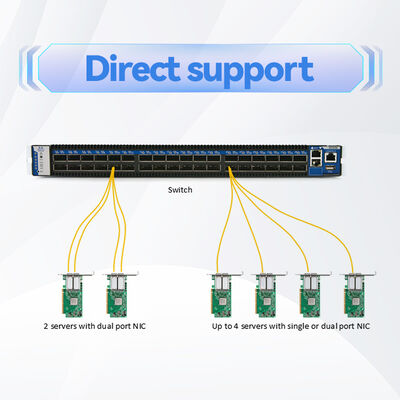

- Data Center Intra-Rack Connectivity: Linking servers to Top-of-Rack switches
- High-Density Switching Fabrics: Interconnections between aggregation switches
- Enterprise Network Core: Short-distance, high-bandwidth links
- Cloud and Hyper-scale Infrastructure: Connections within server pods
- Storage and Server Clusters: High-speed links for SANs and parallel file systems
Frequently Asked Questions
Is the MFA1A00-C015 plug-and-play with any QSFP28 port?
It is designed to be plug-and-play with any port that complies with the SFF-8665 QSFP28 standard and supports 100GBASE-SR4 optics. For guaranteed interoperability, we recommend checking your specific switch or NIC vendor's compatibility list.
Why choose a 15m AOC over a passive DAC of the same length?
The MFA1A00-C015 AOC is lighter, more flexible, provides better EMI immunity, and typically offers more consistent performance at 15m, making it the preferred choice for quality and manageability compared to bulkier passive DAC cables.
Can I monitor the cable's health through software?
Yes. The cable's integrated Digital Diagnostic Monitoring functions can be accessed through the host device's management interface (CLI, SNMP, or GUI), allowing monitoring of key parameters like received optical power and temperature.
Important Precautions
- Adhere to the minimum bend radius (30mm) during installation
- Always use an ESD wrist strap when handling connectors
- Ensure operating environment stays within specified temperature range (0°C to 70°C)
- Confirm host device compatibility before installation
- This is a Class 1 Laser product - do not stare into optical apertures
