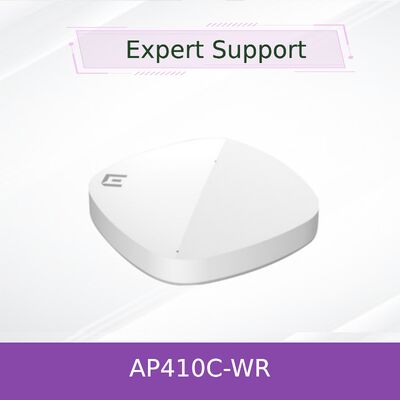

Extreme Networks AP410C-WR Universal Wi-Fi 6 (802.11ax) Tri-Radio Indoor Access Point

Product Model: AP410C-WR | Standard: Wi-Fi 6 (802.11ax) | Max Data Rate: 4.8 Gbps (5 GHz) + 574 Mbps (2.4 GHz) | Management: ExtremeCloud IQ or WiNG OS

1. Product Overview

The Extreme Networks AP410C-WR is an indoor, tri-radio Wi-Fi 6 (802.11ax) access point designed as part of Extreme's Universal Wi-Fi platform. This innovative AP decouples hardware from software, providing the freedom to select and switch between the cloud-based ExtremeCloud IQ management system or the feature-rich WiNG operating system to meet evolving business needs. It delivers aggregate data rates up to 4.8 Gbps in the 5 GHz band and 574 Mbps in the 2.4 GHz band, utilizing a sophisticated tri-radio design that includes a dedicated full-time sensor for enhanced security monitoring. While distinct from a wired network card or a mq9700 series switch, the AP410C-WR serves as the critical wireless edge counterpart, connecting a multitude of devices seamlessly into the network infrastructure.

2. Key Characteristics

• Tri-Radio Architecture: One 5 GHz 4x4:4 main radio, one 2.4 GHz 2x2:2 main radio, and one dedicated dual-band (2.4/5 GHz) security sensor radio.
• Universal Hardware Platform: Supports both ExtremeCloud IQ (cloud) and WiNG OS (on-premises) on the same hardware.
• Wi-Fi 6 (802.11ax) Technology: Features OFDMA, MU-MIMO, 1024-QAM, and BSS Coloring for efficient performance in dense client environments.
• Advanced Security: Supports WPA3 Personal & Enterprise, includes a stateful L2-L7 firewall, and features a full-time, dedicated sensor for rogue device detection.
• High-Density Optimized: Engineered to maintain exceptional user experience in crowded settings like campuses, conference halls, and offices.
• Flexible Power & Connectivity: Powered by standard 802.3at PoE, featuring a multi-rate Ethernet port (100/1000/2500 Mbps) and a USB 2.0 port.

3. Core Technology & Standards

The AP410C-WR is built on several advanced technologies that ensure reliability, performance, and security:

• Software-Selectable Radios (SSR): Allows network administrators to reconfigure radio roles on-the-fly, enabling modes like Dual 5 GHz for high-capacity areas or dedicating spectrum for sensing.
• ExtremeCloud IQ & WiNG OS: Represents a dual-persona software architecture that provides choice between simplified, AI-driven cloud management and a powerful, customizable on-premises network operating system.
• Orthogonal Frequency Division Multiple Access (OFDMA): A key Wi-Fi 6 feature that allows the AP to serve multiple clients simultaneously within a single channel, reducing latency and improving efficiency.
• Cellular Coexistence Filter (CCF): Minimizes interference from nearby cellular networks (LTE/5G) to maintain stable Wi-Fi performance.
• Integrated Bluetooth Low Energy (BLE): Enables location services, asset tracking, and proximity-based engagement (e.g., iBeacon) for IoT and customer experience applications.

4. Operational Concept: Flexibility and Security by Design

The AP410C-WR operates on a principle of hardware abstraction and dedicated resource allocation. Upon first boot, it automatically contacts ExtremeCloud IQ to receive its pre-assigned "persona" or operating system. This OS then governs all AP functions. The three independent radios work in concert: the two main radios handle client data traffic using Wi-Fi 6 efficiencies like OFDMA, while the third radio operates exclusively as a sensor, continuously scanning both frequency bands for threats like rogue access points or ad-hoc networks. This full-time scanning, unlike part-time scanning in lesser APs, provides a constant security posture. This layered approach to connectivity and security makes it a robust wireless endpoint, as critical to a modern network as a high-performance network card is to a server or a core switch like the mq9700 is to data center fabric.

5. Target Applications & Deployment Scenarios

• Higher Education & School Campuses: Supports dense classrooms, lecture halls, and student housing with high-capacity, secure connectivity.
• Enterprise Offices & Corporate Campuses: Delivers reliable performance for bandwidth-intensive applications, video conferencing, and a sea of IoT devices.
• Healthcare Facilities: Provides a secure, always-monitored wireless network for clinical devices, guest access, and staff mobility, with WPA3 ensuring robust data protection.
• Hospitality & Retail: Engages guests with BLE-powered services while supporting point-of-sale systems, inventory management, and high-quality guest Wi-Fi.
• Conference Centers & Stadiums: Handles extreme user density with Wi-Fi 6 efficiencies, ensuring connectivity for thousands of simultaneous users.

6. Technical Specifications

7. Competitive Advantages

• Unmatched Deployment Flexibility: The universal hardware design eliminates the risk of OS lock-in. You can start with cloud management for simplicity and later switch to an on-premises controller for specific needs without replacing hardware—a future-proof investment.
• Superior Security Posture: The dedicated, always-on sensor radio provides continuous threat monitoring without impacting client performance, offering a level of proactive security that is absent in dual-radio APs where scanning is periodic and steals bandwidth.
• Optimized for Modern High-Density Use: Combining Wi-Fi 6 efficiencies (OFDMA, MU-MIMO) with a tri-radio design ensures consistent performance and user experience even in the most challenging, client-saturated environments.
• Reduced Total Cost of Ownership (TCO): Power efficiency via 802.3at PoE, the flexibility to adapt to different management models, and the longevity of the hardware platform all contribute to lower operational and lifecycle costs.

8. Support & Services

We provide comprehensive support for your Extreme Networks deployment:

• Genuine Product & Warranty: The AP410C-WR is covered by Extreme Networks' Limited Lifetime Warranty (LLW) policy. We supply only authentic, certified products.
• Architectural Guidance: Our technical team can assist with planning your wireless network, including AP placement, controller sizing, and integration with wired components like switches and network cards.
• Global Availability: The "-WR" SKU is certified for use in the "Rest of World" regulatory domain, and we ensure compliant supply to various regions.
• Post-Sales Support: Access to firmware updates, technical documentation, and assistance to ensure your wireless network operates at peak performance.

9. Frequently Asked Questions

10. Important Precautions

• Regulatory Domain: The AP410C-WR is certified for "Rest of World" regions. Ensure you use the correct SKU (e.g., -FCC, -CAN) for your specific country's regulatory requirements.
• Power Budgeting: Ensure your PoE switches or injectors comply with 802.3at (PoE+) and can deliver the required power, especially if using the USB port.
• Environmental Limits: Designed for indoor, controlled environments. Do not install in locations where temperature or humidity exceeds specified operating ranges.
• Mounting: Use the included or recommended Extreme mounting accessories to ensure proper physical installation and optimal RF performance.
